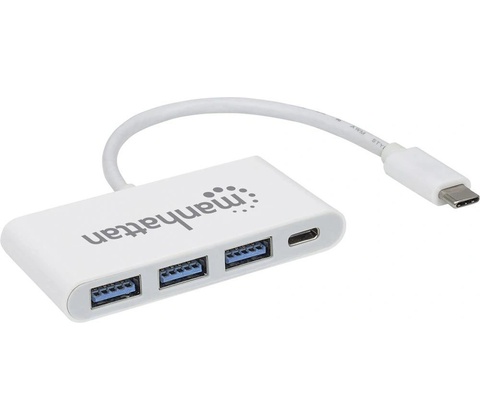

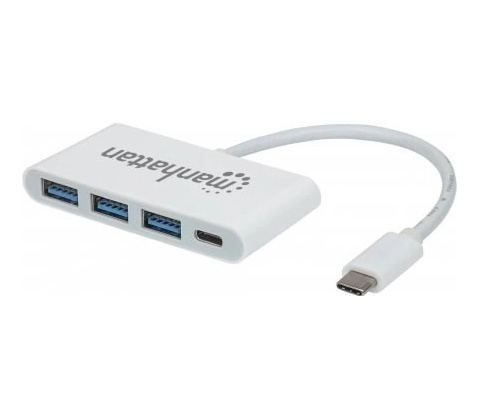

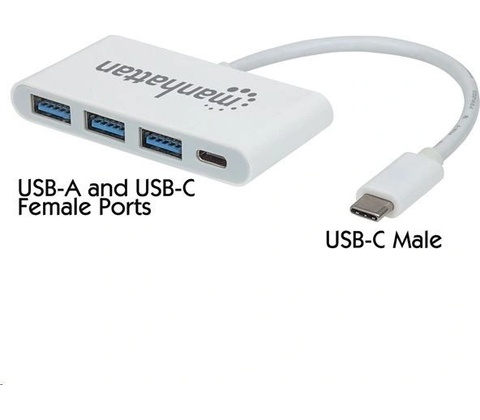

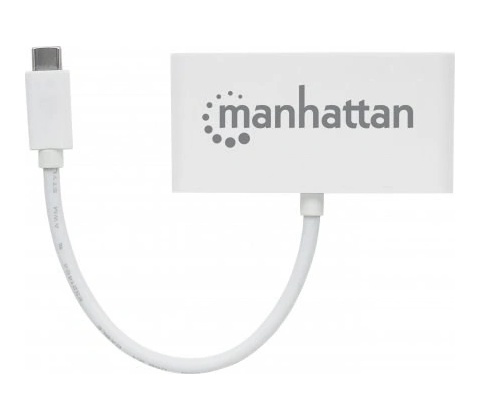

Manhattan 163552

• Druh IO zařízení:USB hub nebo switch; Provedení:Externí
• SuperSpeed USB-C 3.1 Gen 1 Type-C Hub with Power DeliveryUSB Type-C Male to Three Type-A Ports Female and One Type-C Power-Delivery Port FemaleModel Number: 163552Quickly connect more USB Type-A peripherals to Type-C devices

The Manhattan SuperSpeed USB 3.1 Type-C Hub easily adds three SuperSpeed Type-A ports to any USB Type-C compatible device, expanding connectivity for keyboards, mice, external memory and other peripherals. Its SuperSpeed ports are backward compatible to support older devices. They provide data transfer speeds of up to 5 Gbps for external storage, printing and other activities, and they are capable of charging and powering at 5V/1A output. The Manhattan SuperSpeed USB 3.1 Type-C Hub can power the attached peripherals through the USB bus or by attaching the host device's charger to the Type-C port on the hub and power, which will charge the host device and connected peripherals.

Easy to add connectivity

A durable case, compact size and bus-power function make it easily transportable to add USB connectivity almost anywhere. Installation is simple with Plug and Play and hot-swappable capabilities. A built-in USB cable quickly connects the Manhattan SuperSpeed USB 3.1 Type-C Hub to any USB Type-C port. Features:

• Provides a Type-C device with three SuperSpeed USB Type-A ports for additional peripherals
• USB-A ports support SuperSpeed (5 Gbps) data transmission, charging up to 5V/1A
• Bus powered / USB-C port charges host device and hub with USB Power Delivery (PD) using device's existing power supply
• Overcurrent protection; hot-swappable
• Plug and play
• Three-Year Warranty

Specifications:

Standards and Certifications

• USB
• FCC
• CE
• RoHS2
• WEEE
• USB Power Delivery (PD) 2.0

General

• Data transfer speeds: 5 Gbps
• One upstream port with built-in cable, standard Type-C male
• Three downstream ports, standard Type-A female
• One downstream port, standard Type-C female
• Up to 1A total power output
• Bus powered
• Overcurrent protection

Connections

• USB Type-C, 24-pin, male
• Three USB Type-A, 4-pin, female

Output power 5V / 1A - One USB Type-C, 24-pin, female

USB Power Delivery, no data transfer capabilities

Physical

• 24-AWG cable gauge
• Cable Length: 20 cm (8 in.)
• Withstanding voltage: 300 VDC
• Insulation resistance: 10 M?
• Conductive resistance: 5 ?
• Housing: ABS plastic
• Dimensions: 76 x 38 x 10 mm (3 x 1.5 x 0.4 in.)
• Weight: 31 g (1.1 oz.)
• Shielded

Operating Environment

• Operation Temperature: 0 - 40°C (32 - 104°F)
• Storage Temperature: -20 - 60°C (-4 - 140°F)
• Humidity (noncondensing): 5 - 90%

System Requirements - Windows XP/Vista/7/8.1/10 or Linux or Mac 9.x/10.x or above

Package Contents

• SuperSpeed USB 3.1 Gen 1 Type-C Hub with Power Delivery
• Quick Instruction Guide
